n.siegfried fe8a27e022 T0.2 - baseline captured; all six rendering defects confirmed present ...

Runs the app from a clean database, captures the before images, and records
which of F1-F6 actually still reproduce. All six do.

Rather than eyeball screenshots, each defect is measured in a browser by
tests/f_items.py, which reports REPRODUCES / FIXED / INCONCLUSIVE and never a
silent pass. That makes it both the wave 0 record and the wave 1-3 regression
check: an item is done when its probe flips to FIXED.

  F1  hero says "Job A", app bar still says "Select a project", no reload
  F2  "Sign out" spans x382-432 in a 390px viewport - cut in half, 3 rows
  F3  chrome paints over the logo by 106x32px; .header-left collapses to 0
  F4  comments drawer overlaps the header by 380x91px in the standalone creator
  F5  5 of 5 ENABLED wizard inputs compute #f4f4f4 on #e0e0e0
  F6  11 cards in one 5,017px scroll, 0 tabs (review said ~4,700px; it grew)

Three probes needed care to avoid reporting a false pass, and the traps are
worth knowing before anyone verifies a fix:

  F1 disappears if localStorage is primed first, because then both sources of
  truth agree. The probe clears it and drives the real picker.

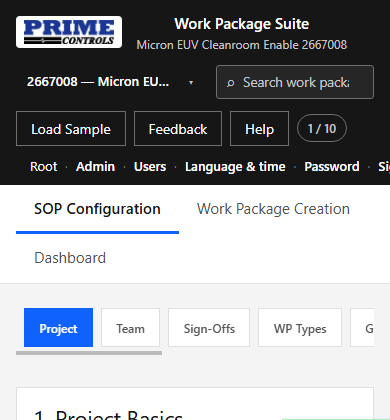

  F3 needs a long project name that is long IN THE DATABASE - any page reached
  with ?project= re-pulls it and overwrites a locally-faked one. It also cannot
  be measured by comparing .header-left to the chrome: under the long name
  .header-left (flex:1, min-width:0) collapses to clientWidth 0, so that
  comparison reports a tidy zero gap while the chrome paints across the logo.
  It measures against .logo, which is flex-shrink:0. My first two attempts at
  this probe both reported FIXED for those reasons; the screenshot did not.
  F5 must ignore genuinely disabled inputs or a fix looks done while real
  fields stay grey.

14 screenshots, not the 12 the plan asks for, because there are 7 pages
(file-map D1). Capture also measures horizontal overflow, which is how BL-001
was found.

Tooling: cdp.py gains viewport() and screenshot() - it could do neither, and
T0.2 requires 390px and 1440px images. 390px sets the mobile flag rather than
just narrowing the window, since every page declares width=device-width and
Chrome otherwise lays out at 980px and no media query under test fires. Both
new scripts reuse browser_check.py's seed() and start_server() instead of
growing a second fixture. Existing browser_check still passes 71/71.

No application code changed.
